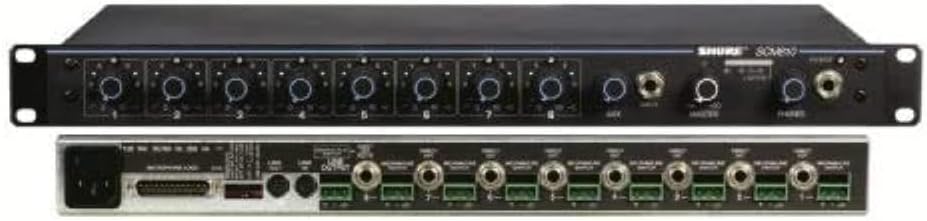

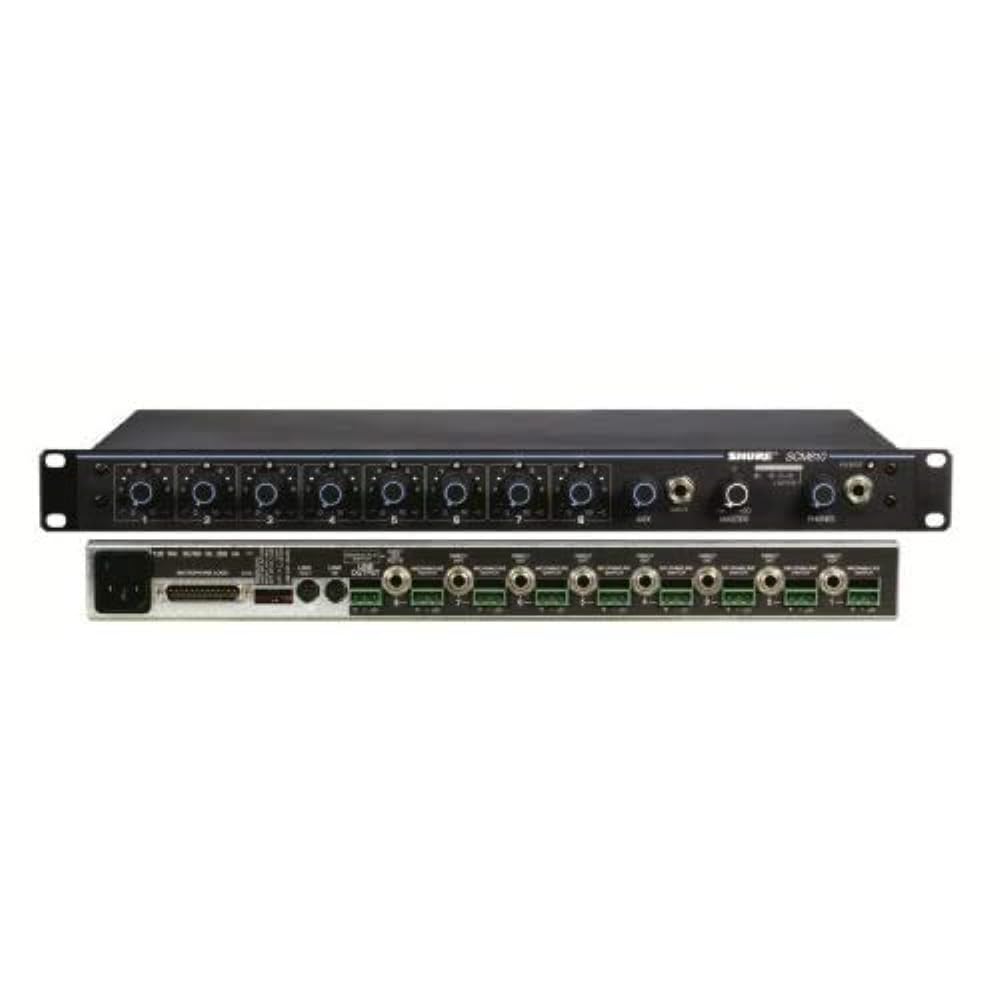

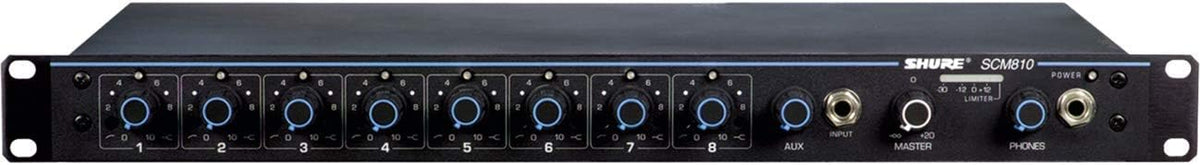

Shure SCM810 Eight Channel Automatic Microphone Mixer with IntelliMix, Adjustable EQ per Channel and 48V Phantom Power, Designed Specifically for Installed Sound Applications
Model: SCM810
Key features
- IntelliMix technology that allows sound system installers to eliminate common problems such as insufficient gain before feedback and muddy speech quality

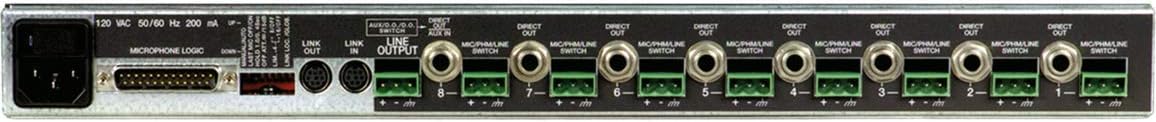

- Eight balanced mic-line input channels (Phoenix block connectors)
- Eight unbalanced 1/4" direct line level outputs
- 48V phantom power selectable per channel
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
Product information
Everything you need to know
Explore the full description, technical specifications, package contents and shipping information.
The Shure SCM810 automatic mixer dramatically improves audio quality in any application where multiple microphones are required. Features adjustable EQ per channel, 48V phantom power, active balanced microphone or line-level inputs, line-level outputs, highly RF resistant chassis and circuitry. Includes complete logic control of microphone activation and linking capacity for up to 400 microphones, with an internal power supply. Any low-impedance dynamic or condenser microphone (including wireless) can be used with the SCM810/E. Multiple SCM810 mixers can be linked to other SCM810/E mixers, as well as to Shure Models FP410, SCM410 and SCM800 mixers. Features Shure’s unique IntelliMix technology that allows sound system installers to eliminate common problems such as insufficient gain before feedback and muddy speech quality.
Product Overview
- Brand: Shure
- Number of Channels: 8
- Item Weight: 12.7 pounds
- Connectivity Technology: Wireless
- Power Source: Corded Electric
Product Features
- IntelliMix technology that allows sound system installers to eliminate common problems such as insufficient gain before feedback and muddy speech quality
- Eight balanced mic-line input channels (Phoenix block connectors)
- Eight unbalanced 1/4" direct line level outputs
- 48V phantom power selectable per channel
- Adjustable EQ per channel: low-frequency rolloff and high-frequency shelving
- Linking capacity for up to 400 microphones, with an internal power supply
- Full rack width (single rack height)
| Number of Channels | 8 |
| Connectivity Technology | Wireless |
| Power Source | Corded Electric |
| Output Connector Type | TRS |
| Audio Input | Phoenix block connectors, 1/4" line inputs |
| Noise Level | 70 db |
| Item Weight | 12.7 pounds |
| Software Update Supported to Date | unknown |
| Brand Name | Shure |
| Number of Items | 1 |
| Manufacturer | Shure |
| UPC | 042406054966 |
| Global Trade Identification Number | 00042406054966 |
| Unit Count | 1 Count |
| Item Type Name | Shure SCM810 8-Channel Automatic Microphone Mixer (48V Phantom Power) with Logic Control, IntelliMix Technology and Adjustable EQ per Channel |
| Model Number | SCM810 |
| Manufacturer Part Number | SCM810 |
| Warranty Description | One year limited. |
- Number of Channels
- 8
- Connectivity Technology
- Wireless
- Power Source
- Corded Electric
- Output Connector Type
- TRS
- Audio Input
- Phoenix block connectors, 1/4" line inputs
- Noise Level
- 70 db
- Item Weight
- 12.7 pounds
- Software Update Supported to Date
- unknown
- Brand Name
- Shure
- Number of Items
- 1
- Manufacturer
- Shure
- UPC
- 042406054966
- Global Trade Identification Number
- 00042406054966
- Unit Count
- 1 Count
- Item Type Name
- Shure SCM810 8-Channel Automatic Microphone Mixer (48V Phantom Power) with Logic Control, IntelliMix Technology and Adjustable EQ per Channel
- Model Number
- SCM810
- Manufacturer Part Number
- SCM810
- Warranty Description
- One year limited.
Every order includes free next-day shipping. The delivery service and $0 shipping charge are confirmed at checkout.
Description
The Shure SCM810 automatic mixer dramatically improves audio quality in any application where multiple microphones are required. Features adjustable EQ per channel, 48V phantom power, active balanced microphone or line-level inputs, line-level outputs, highly RF resistant chassis and circuitry. Includes complete logic control of microphone activation and linking capacity for up to 400 microphones, with an internal power supply. Any low-impedance dynamic or condenser microphone (including wireless) can be used with the SCM810/E. Multiple SCM810 mixers can be linked to other SCM810/E mixers, as well as to Shure Models FP410, SCM410 and SCM800 mixers. Features Shure’s unique IntelliMix technology that allows sound system installers to eliminate common problems such as insufficient gain before feedback and muddy speech quality.
Product Overview
- Brand: Shure
- Number of Channels: 8
- Item Weight: 12.7 pounds
- Connectivity Technology: Wireless
- Power Source: Corded Electric
Product Features
- IntelliMix technology that allows sound system installers to eliminate common problems such as insufficient gain before feedback and muddy speech quality
- Eight balanced mic-line input channels (Phoenix block connectors)
- Eight unbalanced 1/4" direct line level outputs
- 48V phantom power selectable per channel
- Adjustable EQ per channel: low-frequency rolloff and high-frequency shelving
- Linking capacity for up to 400 microphones, with an internal power supply
- Full rack width (single rack height)
| Number of Channels | 8 |
| Connectivity Technology | Wireless |
| Power Source | Corded Electric |
| Output Connector Type | TRS |
| Audio Input | Phoenix block connectors, 1/4" line inputs |
| Noise Level | 70 db |
| Item Weight | 12.7 pounds |
| Software Update Supported to Date | unknown |
| Brand Name | Shure |
| Number of Items | 1 |
| Manufacturer | Shure |
| UPC | 042406054966 |
| Global Trade Identification Number | 00042406054966 |
| Unit Count | 1 Count |
| Item Type Name | Shure SCM810 8-Channel Automatic Microphone Mixer (48V Phantom Power) with Logic Control, IntelliMix Technology and Adjustable EQ per Channel |
| Model Number | SCM810 |
| Manufacturer Part Number | SCM810 |
| Warranty Description | One year limited. |
Specifications
- Number of Channels
- 8
- Connectivity Technology
- Wireless
- Power Source
- Corded Electric
- Output Connector Type
- TRS
- Audio Input
- Phoenix block connectors, 1/4" line inputs
- Noise Level
- 70 db
- Item Weight
- 12.7 pounds
- Software Update Supported to Date
- unknown
- Brand Name
- Shure
- Number of Items
- 1
- Manufacturer
- Shure
- UPC
- 042406054966
- Global Trade Identification Number
- 00042406054966
- Unit Count
- 1 Count
- Item Type Name
- Shure SCM810 8-Channel Automatic Microphone Mixer (48V Phantom Power) with Logic Control, IntelliMix Technology and Adjustable EQ per Channel
- Model Number
- SCM810
- Manufacturer Part Number
- SCM810
- Warranty Description
- One year limited.
Shipping
Every order includes free next-day shipping. The delivery service and $0 shipping charge are confirmed at checkout.
